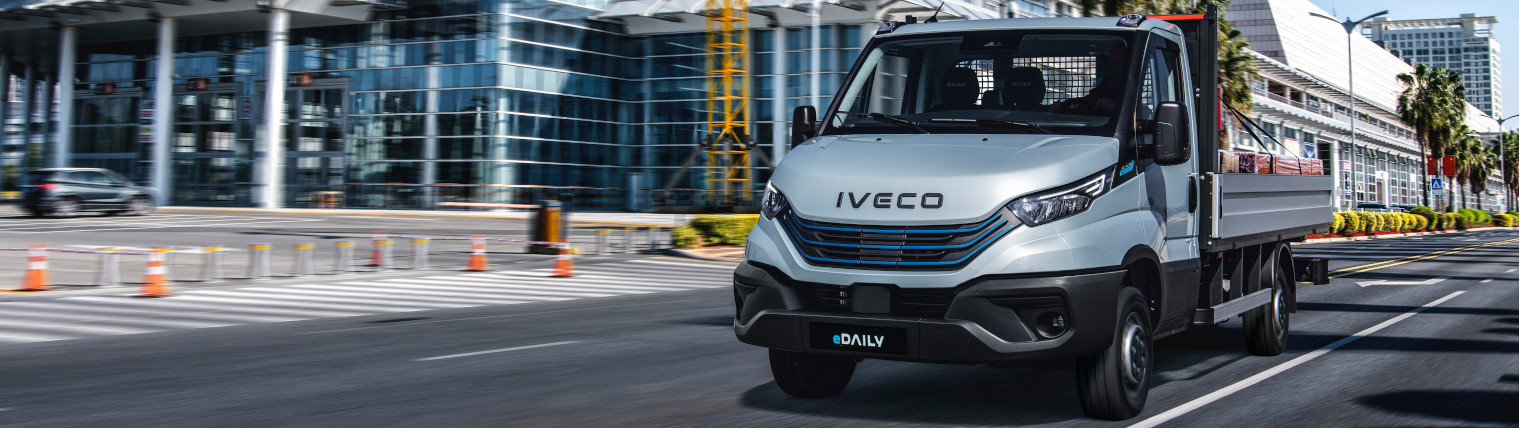

eDAILY Chassis Cab

Access all areas

Unlimited access to all areas – even those with the strictest emissions and noise restrictions. Whether you are driving in city centres to load, unload, deliver, sell or build, eDaily is the best vehicle for your zero-emission, noise-free urban missions.

All the energy and autonomy your business needs

You can specify your eDAILY from 1 to 4 modular batteries, and upgrade the configuration at any time during the vehicle’s life. The high energy density (265Wh/kg at cell level) of the 37kWh modular battery means more power and less weight. All this, together with up to 248* miles autonomy in urban cycles, makes eDAILY perfect for your operation.

* Urban range based on simulations with vehicle parameters from homologation measures. Range may vary depending on driving style, external weather and other conditions.

Chargers and charging time

The eDaily charging plug is easily accessible from whatever direction the cable is coming. Behind the flap which protects the plug from water and dust, a LED indicator shows the status and level of charge.

eDaily can be charged in every situation, connected to charging columns, industrial sockets and home sockets.
Fast charging up to 115 kW on 3- and 4-battery versions adds up to 60 miles of range in 20 minutes.
All charging options can be managed via App.

8-year battery warranty with replacement when residual capacity falls below 80%

eDAILY protects Customers with the best-in-class high-voltage battery warranty proposal: up to 8 years, with extended mileage limits and guaranteed battery replacement when the residual capacity drops below 80%.

8-year battery warranty

eDAILY with 1 battery
160.000 km

eDAILY with 2, 3 or 4 batteries
250.000 km

eDAILY with ePTO
56 MWh total energy throughput per battery

Battery replacement when capacity drops below 80%

New lateral charging socket

A new charging socket on the side of the vehicle is available as an option, so you can charge your eDaily conveniently in all situations.

Electric Power Take-Off solutions optimised for all application

An ePTO up to 50 kW is available as electric plug or additional electric motor to power refrigeration, cranes and other superstructures, even when the vehicle is switched off. You can also plug your vehicle into an electrical socket as a power supply for your equipment.

ePTO AT LOW VOLTAGE
12 V
2.5 kW
EXAMPLE OF INSTALLATIONS
Loading bank

ePTO AT HIGH VOLTAGE
400 V
15 kW
EXAMPLE OF INSTALLATIONS
Refrigerator groups

MECHANIC ePTO (auxiliary electric motor)
15 kW
EXAMPLE OF INSTALLATIONS
Water pump

ePTO AT HIGH VOLTAGE
400 V
50 kW
EXAMPLE OF INSTALLATIONS
Road maintenance

MECHANIC ePTO (auxiliary electric motor)
50 kW
EXAMPLE OF INSTALLATIONS
Gully Cleaners

*The mechanical ePTO is only available for CAB versions, not for VAN

Flexibility with modular battery installation

eDAILY can be equipped with 1, 2, 3 or 4 modular batteries, and the configuration can be upgraded during the vehicle’s life. The electrified modular chassis platform provides the best protection for the batteries, which are housed between the frame side members instead of surrounding them with a dedicated metal cage as in unibody solutions.
The well-proven robustness and durability, no additional structural weight and modular battery configuration make eDAILY an “electric skateboard” capable of supporting all bodies for every mission.

Optimised energy with modular batteries

Wheelbases (mm)	Single wheel		Twin wheel
	Gross vehicle weight (tons)		Gross vehicle weight (tons)
	Min.	Max.	Min.	Max.
3.000	3.5	3.8	⚊	⚊
3.450	3.5	4.2	4.2	7.2
3.750	3.5	4.2	4.2	7.2
4.100	3.5	4.2	4.2	7.2
4.350	⚊	⚊	6.0	7.2
5.100	⚊	⚊	6.0	7.2

No impact of batteries on loading volume

The chassis solution enables the modular installation of 1, 2, 3 or 4 batteries with no element protruding above the frame – ideal for installing superstructures on the cab and allows for a load capacity of up to 20 m3 in the van version.
The absence of parts protruding from the upper frame and the presence of analogic and digital interfaces for the equipment make eDAILY the ideal base for vocational vehicles and the vehicle of choice for bodybuilders.

Up to 140kW (188hp) max power and 400Nm peak torque

The e-motor delivers a performance equivalent to that of the diesel version, and instant electric torque makes the eDaily even more responsive and enjoyable to drive. With rear-wheel drive, eDaily will power through heavy-duty missions.

eDAILY eMotor
Peak power [kW – CV]
1 battery
100-134
2 – 3 – 4 batteries
140-188

Maximum torque 120 s [Nm]
1 battery
300
2 – 3 – 4 batteries
400

Max engine rpm [rpm]
12,000

Continuous power R85 [kW – CV]
90-121

Continuous torque R85 [Nm]
220

Temporary boost with Hi-Power

Thanks to Hi-Power, eDAILY can do things that others can’t. When in POWER mode you can tap into an extra reserve of energy to maximise performance and perform demanding tasks, overtake another vehicle or tackle a steep slope. The Hi-Power function can be active for up to 2 minutes – unique on the market.

Best-in-class maneuverability

Lowest turning radius from 5.5 m kerb to kerb.

Turning circle diameter (m)

Best-in-class towing capacity up to 3.5t

eDaily is a true towing champion and holds the TOWING WORLD RECORDS™ title for the ‘Heaviest weight towed by an electric van’. It has claimed the title with a standard production 3.5 t van featuring a 140kW rear-wheel drive drivetrain with 400Nm torque towing an incredible 153.58 tonnes, also breaking records set by all-wheel drive cars.

Functional dashboard

The new one-piece dashboard with ample open storage is designed for comfort.
Drivers will never worry about misplacing their mobile device or running out of charge with the phone and tablet holders, and new wireless charger.
Their belongings will be within easy reach in the new, well-placed storage compartment next to the driver.

Driver-friendly vehicle interface

Door opening assist

Keep your hands free when making deliveries with keyless operation of the vehicle’s door locks and engine start and stop button.

HI-ADAPTIVE seats

The first LCV with seat cushion, backrest and headrest in memory foam.

• Superior comfort and reduced risk of back pain.
• More safety with a premium driving experience.
• Excellent leg support with the long, thick front cushion.
• Design of seat surround and levers optimised for the frequent entries and exits typical of delivery missions.

Rear suspension with payload increase

The new option for a rear leafspring suspension with progressive stiffness enables the vehicle to carry heavier loads, with a performance comparable to the standard double-leaf suspension.

For the cab version, a reduced flexibility option optimises comfort according to the specific mission.

Air-Pro - the intelligent suspension

The innovative AIR-PRO intelligent air suspension with intelligent controls offers superior driving comfort, and protects the driver and the load. Easily manage the AIR-PRO suspensions with a simple touch of the dedicated control on the dashboard and in the cargo compartment, and with the intuitive graphics of the instrument cluster.

You are in control

Dynamic control: Easily choose how you wish the suspensions to behave — a soft setup for a comfortable ride, or maximum roll control for optimal performance at full load.
Static control: Quickly adjust the height when loading and unloading — it takes less than 10 seconds for the AIR-PRO adaptive air suspension to raise and lower the vehicle.

Adaptive control

The unique AIR-PRO Continuous Damping Control (CDC) unit reacts almost instantly to road bumps by calculating the ideal pressure to be applied on each shock absorber every 10 milliseconds.

Choose your ideal driving style with in-cab controls

Select between various driving and regeneration modes to achieve the desired level of performance and consumption and optimise your driving style.

The driving mode selector allows you to adjust the vehicle’s performance through the following options:

• NATURAL
• ECO to save energy and extend range
• POWER to maximise performance

With the regenerative mode selector you can select the regeneration mode:

• STANDARD REGENERATIVE
• ONE PEDAL DRIVE to drive easily in the city and maximise regeneration
• SAILING to roll freely by inertia when the accelerator is released

Traffic Jam Assist

Your eDaily will automatically follow the traffic flow, accelerating and braking as needed, and steering to ensure you stay in your lane.

Turn Assist

This feature will help you turn safely by detecting potential collisions and automatically activating the brake to slow down and avoid or mitigate an impact with a vehicle or vulnerable road user.

Adaptive Cruise Control with Stop & Go

Your eDaily will keep pace with the vehicle in front, holding the same speed and keeping the distance you set until you reach your cruising speed.

If the vehicle ahead stops, so will your eDaily, and when it moves away, a quick touch of the accelerator will reactivate the ACC S&G feature.

AEBS & City Brake

The AEBS (Advanced Emergency Braking System) ensures your safety by detecting a potential collision and braking independently.
It prevents collisions that occur at less than 50 km/h and significantly reduces the severity of impacts when travelling at higher speeds.
In heavy traffic, the City Brake helps to avoid collisions at low speeds from 5 km/h.
The system reacts to licensed vehicles and vulnerable road users, so it will protect from collisions with pedestrians and cyclists travelling at low speeds.
Both systems have three different configurations selectable from the menu, which fleet managers have the ability to set and lock.

Advanced Lane Centering

This feature will keep your Daily in your chosen lane when you’re on the road.

Blind Spot Warning & Blind Spot Information System

Change lane with confidence in the knowledge that your Daily will alert you if a vehicle is approaching your blind spot.
When manoeuvring at low speed, the Blind Spot Information System will alert you if a cyclist is approaching your blind spot on the kerbside of the vehicle enabling you to stop before you cross their trajectory.

Door Opening Warning

Open the door safely, as this feature will alert you if a vehicle or a cyclist is approaching from behind you.

Intelligent Speed Assist & Traffic Sign Recognition Safety Warnings

The system will help you keep to the speed limits, prompting you to slow down when you are driving too fast through visual and sound alerts.

Reverse with confidence

This feature will help you reverse the vehicle with ease and safely, providing information about vehicles and obstacles around you, and sound an alert if you are getting too close, and brake automatically if necessary to prevent a collision.

eMobility made easy

eStart Pack is the entry point dedicated to electromobility developed specifically to make your experience with eDaily easy, productive, profitable, safe and sustainable. It includes:

IVECO ON Access
Access our IVECO On customer portal to get insights on the performance and driving style of your fleet so to optimise performance and efficiency.

Uptime Monitoring & Management
If there is an anomaly which may turn into a breakdown, IVECO Customer Uptime Center and IVECO Service Points proactively contact you to plan an intervention in time keeping your vehicle on the road. The Remote Assistance Service save your time by fixing the fault remotely when it is possible.
Over-the-air updates enable software updates remotely to maximise your vehicle uptime.

eRange Assurance
Proactive alerts inform you if there are critical battery levels and charging issues, ensuring visibility and control over your vehicle’s charging status and range.

eRemote Control
Enhance your fleet management with vehicle remote control, recharge and preconditioning scheduling, saving time and resources as you run your operation efficiently and profitably.

Recharging made easy

Subscribe to the ePRO Pack and benefit of the following services:

IVECO eCharge Management
A streamlined and seamless charging experience with access to a widespread network of charging points. Easily monitor and control your energy usage and manage your energy expenses.

eDaily Routing App
It offers precise estimates of range, charge needed, and arrival time, using your live vehicle data and driving style.

The full eMobility experience

Subscribe to the eFleet Pack and benefit of the following services:

IVECO eCharge Management
A streamlined and seamless charging experience with access to a widespread network of charging points. Easily monitor and control your energy usage and manage your energy expenses.

eDaily Routing App
It offers precise estimates of range, charge needed, and arrival time, using your live vehicle data and driving style.

Professional eReport
Comprehensive report which provides valuable insights into the energy usage and driver behaviour to optimise fleet operations for improved productivity, sustainability, and cost-effectiveness.

Professional Safe Report
Allow you to evaluate and improve your driving style to be safer on the road thanks to a detailed report
